Product description

Strain gauges are widely used in many measurement applications, whether static or dynamic. A strain gauge is also referred to as an electrical resistance strain gauge, or simply a resistance strain gauge.

They are also used in measurement applications that can be considered dynamic, where the output fluctuates significantly due to the deformation of a tested mechanical object. They are commonly used for bodies subjected to stress and torsion.

“Strain” is defined as the ratio of the change in an object’s length to its original length. A strain gauge can measure this change caused by an external force and converts it into an electrical signal that can later be digitized, displayed, recorded, and analyzed.

Technical specifications

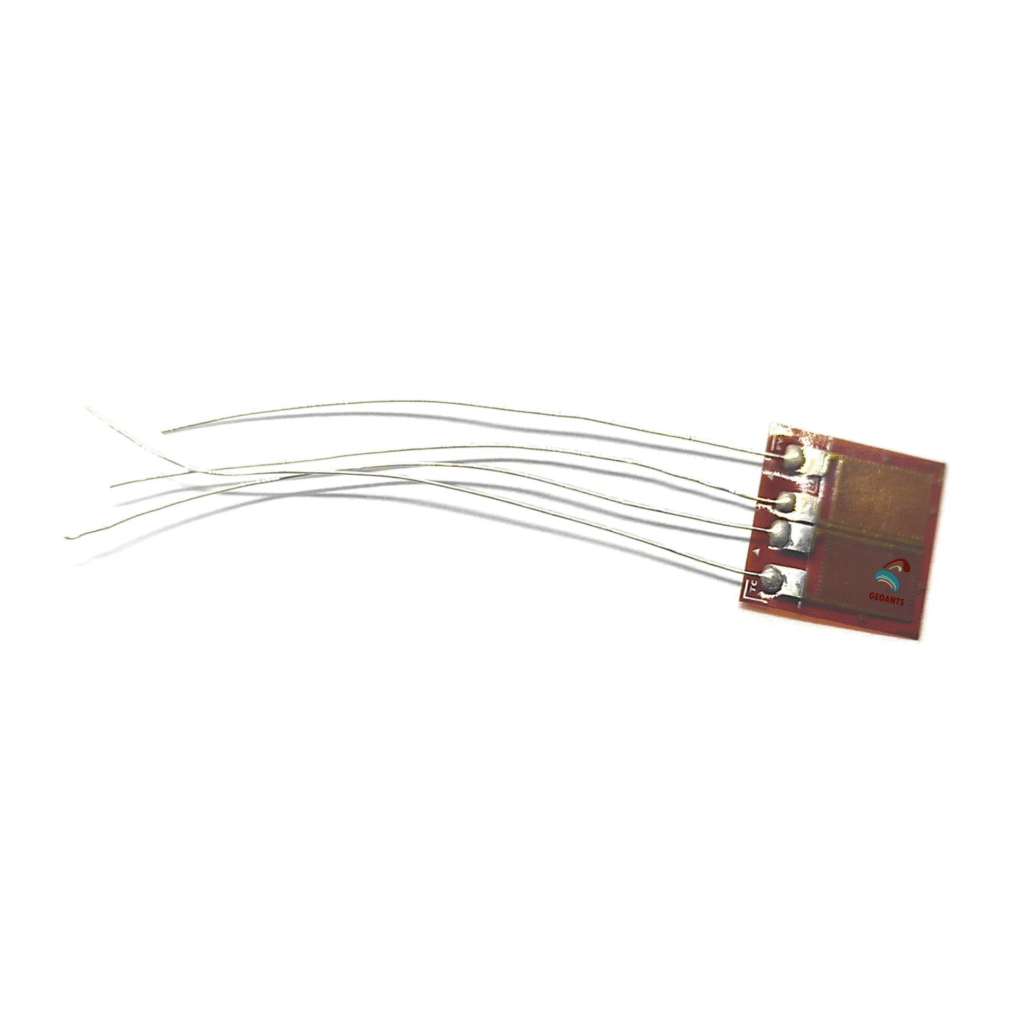

350 Ω Half-Bridge Strain Gauge – Technical Specifications:

• Electrical resistance (nominal): 350 Ω
• Deviation from mean value: ± 0.2 Ω
• Applicable temperature range: Normal temp. -30 to 80 °C
• Gauge factor and tolerance: 2.11 ± 1%
• Thermal output:
  • Thermal output coefficient: < 2 µm/m/°C
  • Thermal output distribution (average): < 30 ± µm/m
• Grid length: 4.0 mm
• Grid width: 4.1 mm
