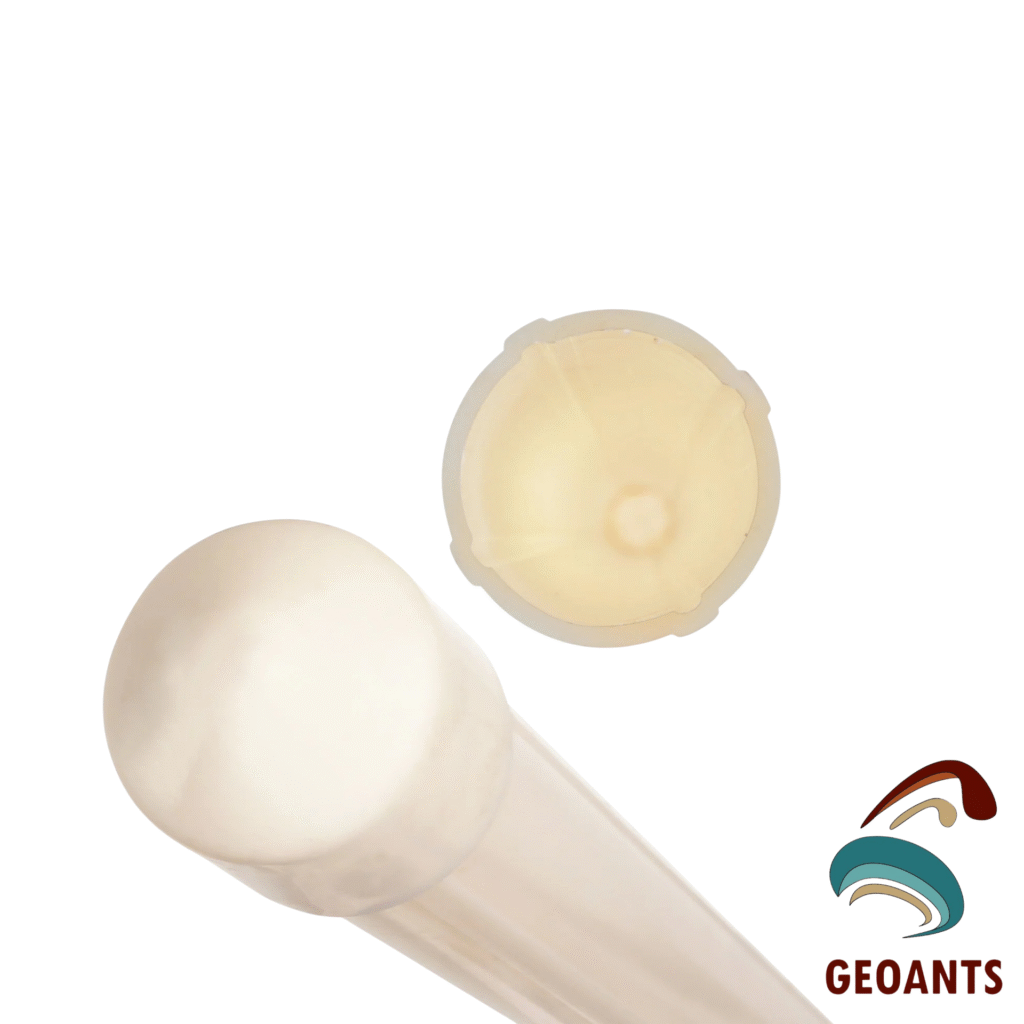

Inclinometer casings are installed in boreholes and concrete structural elements to monitor relative displacement caused by the movement of soil masses. This inclinometer casing is fully compatible with both mobile and in-place inclinometer instruments. The 3 m long casing has a 70 mm outer diameter. The body is made of ABS plastic and features grooves oriented at 90 degrees. It is connected using couplings with a 78 mm outer diameter and provides less than 0.3 degrees of spiral deviation per segment. This connection ensures long-term durability and stable monitoring performance.

The connection is secured by taping and riveting together with application chemicals to guarantee watertightness. In installations carried out in conventional vertical inclinometer boreholes, the casing will be ready for service after the injection of a soil mixture consisting of water, cement, and bentonite.

You can order the GeoAnts inclinometer casing set, which includes all the necessary components for correct installation and use on site. Your orders will be dispatched immediately from our in-house stock.
